Scientists Reveal Real-Time Melting of Skyrmion Lattices

Researchers at Johannes Gutenberg University Mainz (JGU) have successfully captured the real-time melting of two-dimensional skyrmion lattices, providing new insights into phase transitions at the microscopic level. The findings, published in Nature Nanotechnology on August 4, 2025, could have significant implications for future data storage technologies.

The study, led by Raphael Gruber under the guidance of Professor Mathias Kläui, focuses on the behavior of skyrmions—tiny magnetic vortices that can serve as stable entities within thin magnetic layers. Gruber explained, “By utilizing skyrmions, we were able to directly observe, for the first time, the transition of a two-dimensional ordered lattice structure into a disordered state at the microscopic level in real time.”

Understanding the Two-Step Melting Process

Melting processes are often understood from a macroscopic perspective, exemplified by ice turning into water. However, the microscopic details remain less clear, especially in two-dimensional systems where distinct phenomena emerge. Gruber elaborated, “This phase transition is particularly intriguing in two-dimensional systems, where distinct phenomena emerge, differing from those observed in three-dimensional counterparts.”

The research team generated skyrmions by carefully adjusting temperature and magnetic fields. These skyrmions form a regular lattice structure when densely packed. The core question driving the investigation was: What happens when this ordered state transitions to a disordered one? Employing a magneto-optical Kerr microscope, the researchers observed this melting process live for the first time.

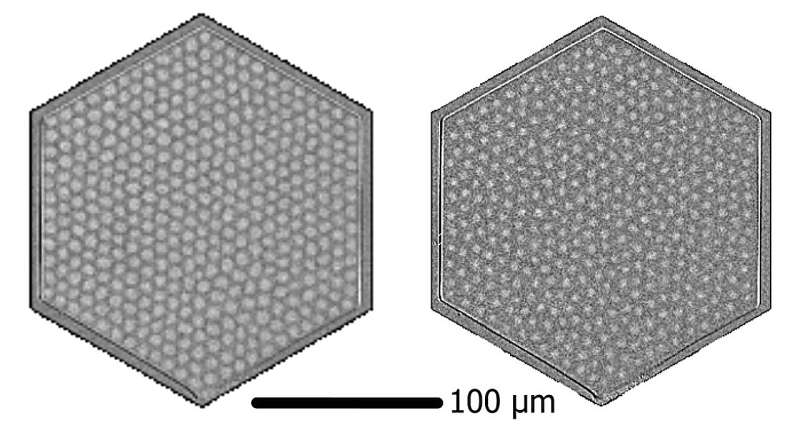

Unlike the melting of three-dimensional structures, the two-dimensional skyrmion lattice undergoes a unique two-step melting process. In the initial phase, translational order is lost while the skyrmions remain within the lattice but exhibit irregular distances from their nearest neighbors. The second phase compromises the orientation, ultimately resulting in the complete dissolution of the lattice.

Innovative Methods for Inducing Melting

A noteworthy aspect of this study is the innovative method used to induce melting. Traditionally, increasing temperature is the go-to approach. However, this method would disrupt the very conditions necessary for the stability of skyrmions. Instead, the researchers reduced the size of the skyrmions by modulating the magnetic field. This change allowed for greater mobility within the lattice, facilitating the melting process.

Gruber noted, “This strategy, akin to increasing temperature, leads to the lattice structure becoming progressively disordered, ultimately resulting in its complete dissolution.” The research team emphasized the significance of their collaboration with colleagues from the Center for Quantum Spintronics at the Norwegian University of Science and Technology, which greatly contributed to the elucidation of this melting transition.

The implications of these findings are substantial. They suggest that skyrmions could play a pivotal role in future data storage technologies, offering promising enhancements in data density, read/write speeds, and energy efficiency. As research continues, the understanding gained from these observations will likely influence the development of advanced magnetic devices.

In summary, the work conducted at JGU sheds light on intricate melting processes in two-dimensional systems. With the potential applications of skyrmions in emerging technologies, this research represents a significant step forward in the field of nanotechnology and materials science.
